In an era where B2B buyers demand uncompromising precision, eye‑catching aesthetics, and reliable lead times, lost wax casting—also called investment casting—remains one of the most trusted manufacturing routes for custom copper components. Whether sculpting an ornate Buddha statue, engineering an industrial valve, or fabricating boutique architectural hardware, the technique offers a blend of design freedom, surface perfection, and economical scalability rarely matched by rival processes.
This article provides an exhaustive exploration of why forward‑thinking procurement managers and product engineers consistently specify the lost wax method for high‑end copper projects. Drawing upon more than 17 years of foundry experience at QUANZHOU NUOJIE LIGHT INDUSTRY CO. LTD, we unpack the science, economics, and strategic benefits that empower global buyers to elevate their product lines and margins.
1. A Brief History of Lost Wax Casting
1.1 Ancient Origins
Archaeologists trace lost wax casting back over 6,000 years, with Mesopotamian, Egyptian, and Chinese artisans producing sophisticated bronze artifacts long before industrialization. These early craftsmen discovered that a one‑off wax model could capture fine details far beyond the reach of stone carving or forging.
1.2 Renaissance Resurgence
During the European Renaissance, masters like Benvenuto Cellini employed the technique to realize monumental sculptures in bronze. Their success cemented the process as the gold standard for artistic metalwork, a reputation still intact today.
1.3 Industrial Adaptation
The 20th century saw the method evolve into a repeatable, high‑volume process. By marrying precision ceramics, automated wax injection, and vacuum casting, foundries began supplying aerospace turbines, biomedical implants, and complex pump housings—all while maintaining the craft’s hallmark detail.

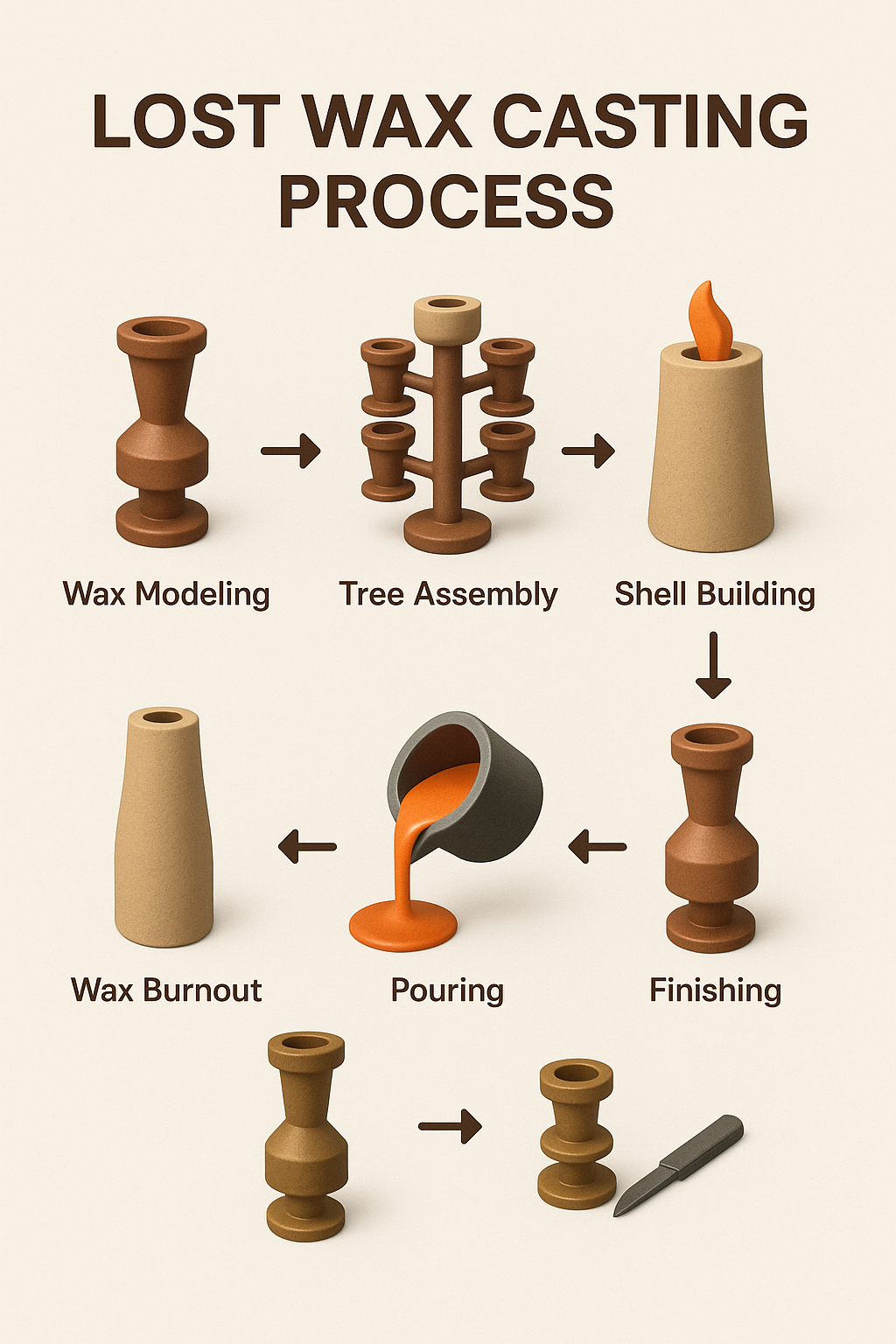

2. Core Principles: How the Process Works
2.1 Wax Pattern Creation
We start by injecting molten wax into an aluminum die or by hand‑carving a limited‑edition prototype. This pattern mirrors the final geometry, down to sub‑0.1 mm features.
2.2 Tree Assembly
Multiple wax patterns are affixed to a central sprue, forming a wax tree. This configuration optimizes metal flow and mold filling while reducing scrap.
2.3 Ceramic Shell Building
Through alternating dips in colloidal silica slurry and fine refractory sand, a ceramic shell gradually envelops the tree. Each layer dries under controlled humidity to avoid microcracks, yielding a mold capable of withstanding 1,200 °C pours.
2.4 Wax Burnout
The entire assembly is autoclaved or flash‑fired, vaporizing the wax and leaving a precise cavity. This is the origin of the term lost wax.

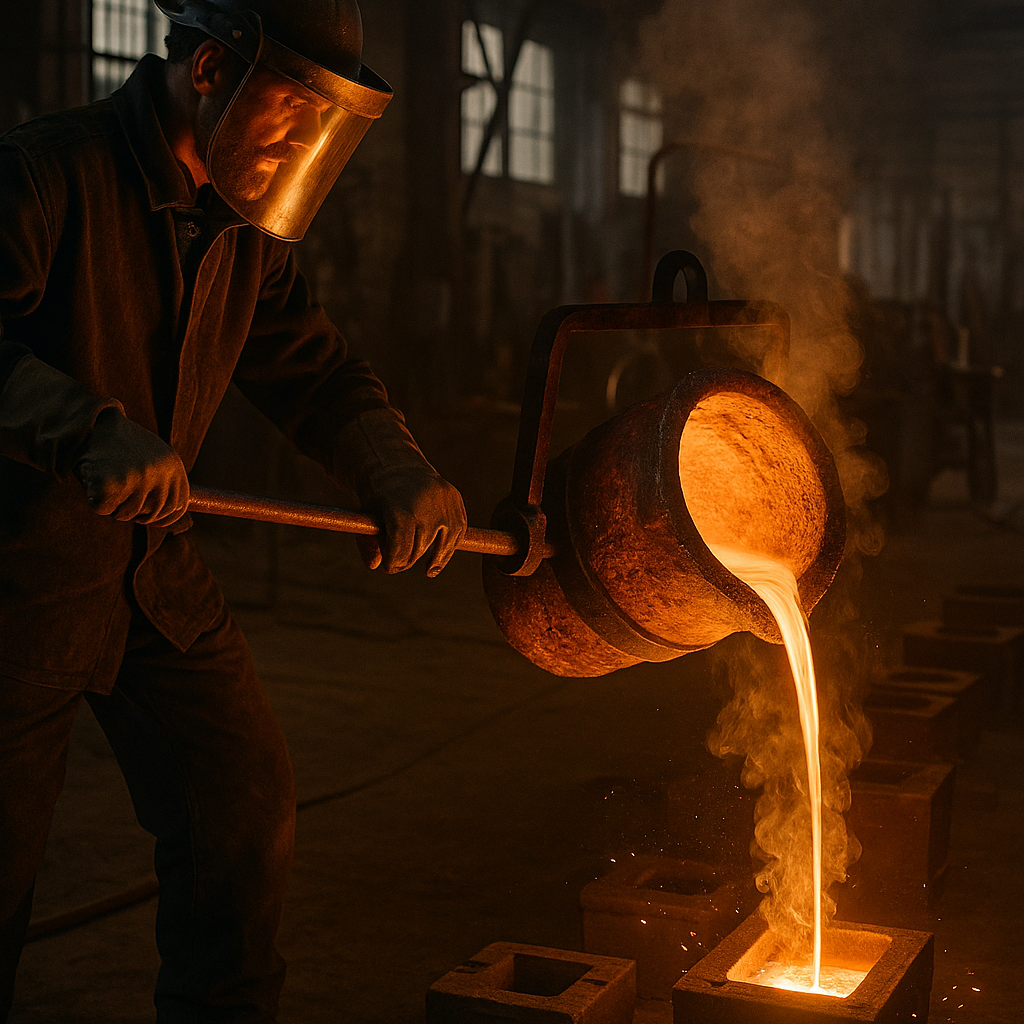

2.5 Molten Metal Pouring
Copper‑based alloys—pure copper, brass, or bronze—are melted in induction furnaces and poured under gravity, vacuum, or centrifugal force, ensuring thorough mold penetration.
2.6 Knockout & Finishing
After cooling, the ceramic shell is mechanically or chemically removed. Gates are cut, surfaces lightly blasted, and—where stipulated—CNC post‑machining sharpens tolerances to ±0.05 mm.
3. Why Copper & Bronze Excel in Investment Casting
| Property | Advantage in Lost Wax Casting |
|---|---|
| High Fluidity When Molten | Fills thin‑wall sections (< 2 mm) without porosity |
| Excellent Thermal Conductivity | Promotes uniform solidification, reducing hot‑spot shrinkage |
| Intrinsic Antimicrobial Qualities | Perfect for medical & architectural touch surfaces |
| Attractive Natural Patina | Adds aesthetic depth to sculptures and décor |
| Superb Stretch Before Fracture | Endures delicate jewelry or ornamental features without cracking |
For B2B buyers, these attributes translate into fewer defects, lower finishing costs, and longer product life cycles—all critical to brand reputation and customer satisfaction.

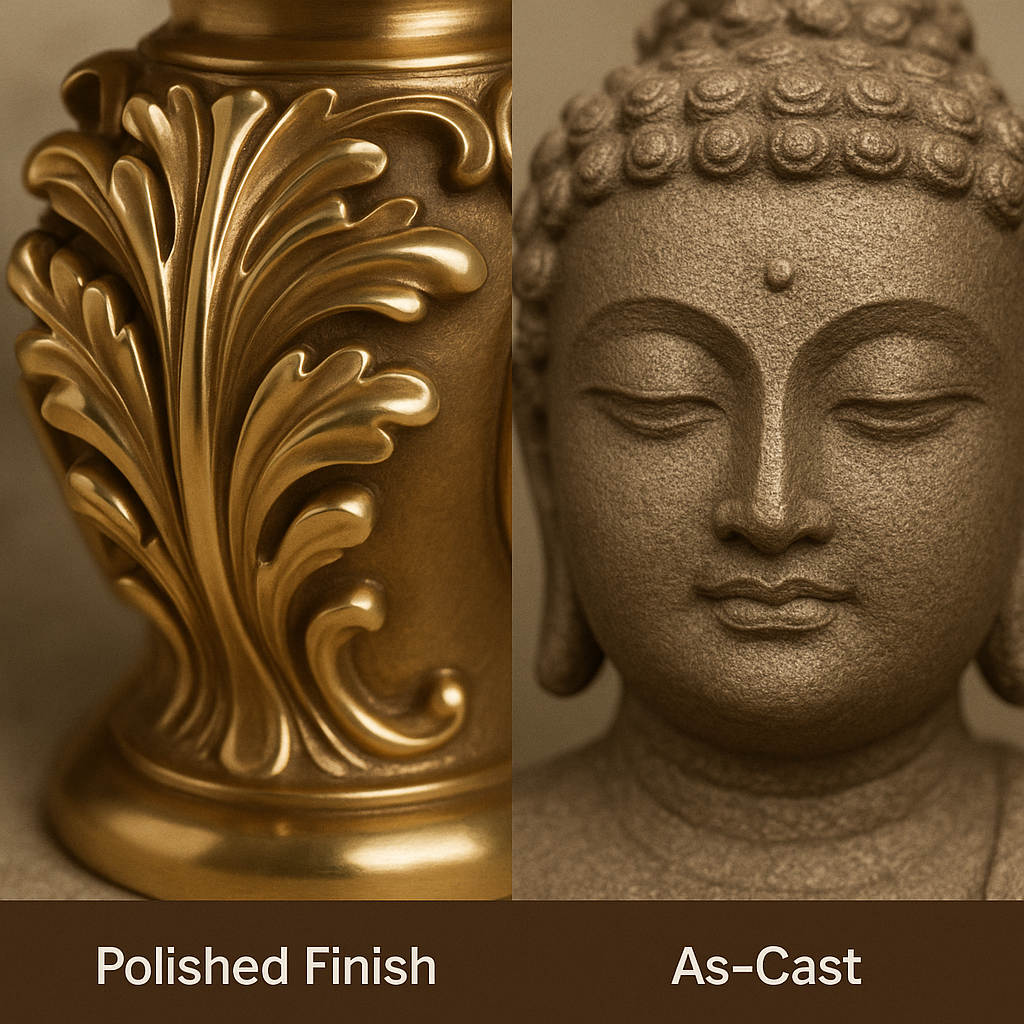

4. Surface Finish Excellence: Mirror Quality Straight From the Mold
4.1 Sub‑Micron Smoothness
Because the ceramic mold records the wax pattern at the micrometer scale, the resulting cast emerges with an Ra roughness as low as 1.6 µm—already near a brushed metal finish.
4.2 Reduced Machining & Polishing
Minimal surface imperfections mean up to 40 % savings in secondary finishing, a direct boost to profit margins on large production runs.
4.3 Patina & Coating Compatibility
A smoother substrate enhances adhesion for enamels, powder coatings, and chemical patinas, broadening product design possibilities without extra prep time.
5. Complex Geometry Unleashed: Turning Artistic Visions Into Reality
5.1 Free‑Form Sculptures
Our facility routinely casts life‑size Buddha statues displaying intricate lotus petals, halo rings, and facial expressions that would be cost‑prohibitive via CNC machining.
5.2 Internal Channels & Undercuts
Employing soluble wax cores or ceramic inserts, we integrate internal passages—ideal for custom heat exchangers or fluid manifolds—without post‑drilling.
5.3 Thin Walls, Light Weight
Wall sections down to 0.8 mm are achievable, yielding lightweight yet strong components—crucial for drone housings, wearable tech, and luxury consumer goods.
6. Dimensional Accuracy & Repeatability for High‑Volume Projects
| Metric | Lost Wax (Copper) | Sand Casting | Die Casting (Zinc) |
|---|---|---|---|
| Linear Tolerance (under 50 mm) | ±0.05 mm | ±0.30 mm | ±0.10 mm |
| Repeatability (CpK) | ≥ 1.67 | 0.80 | 1.50 |
| Typical Scrap Rate | < 2 % | 5 – 10 % | 3 % |
| Surface Finish (Ra) | 1.6 µm | 6 µm | 3 µm |
These figures demonstrate why aerospace, defense, and premium consumer brands favor investment‑cast copper parts when tight GD&T and cosmetic appeal matter.
7. Cost–Benefit Analysis vs. Alternative Manufacturing Methods
7.1 Tooling Investment
A single aluminum wax‑injection die typically costs 30 – 40 % less than an equivalent steel die‑cast tool, while lasting for tens of thousands of shots.
7.2 Per‑Unit Economics
Above 1,000 units per year, lost wax parts often beat five‑axis CNC pricing by up to 60 % once scrap, machine hours, and finishing are tallied.
7.3 Hidden Savings
- Assembly reduction: Integrated bosses, threads, and logos eliminate secondary welding or engraving.
- Inventory trimming: With consistent accuracy, just‑in‑time delivery becomes feasible, lowering storage overhead.
8. Sustainability & Waste Reduction in Modern Foundries
- Wax Reclamation: Up to 90 % of sprue wax is re‑filtered and reused.
- Recyclable Ceramics: Spent shells become aggregate in construction, diverting waste from landfill.
- Induction Furnaces: Our electric melting lines cut CO₂ emissions by 35 % versus traditional oil‑fired crucibles.
- Life‑Cycle Benefits: Copper alloys retain near‑100 % recyclability without downgrading properties, supporting circular‑economy goals.
9. Quality Assurance at QUANZHOU NUOJIE LIGHT INDUSTRY CO. LTD
9.1 ISO‑Certified Processes
Our plant adheres to ISO 9001:2015 and ISO 14001 protocols, integrating Statistical Process Control (SPC) from wax injection through final inspection.
9.2 Non‑Destructive Testing
- X‑ray radiography verifies internal soundness, vital for pressure‑bearing copper valves.
- Ultrasonic scanning detects sub‑surface inclusions below 0.3 mm.
9.3 Final Inspection
Each batch undergoes CMM dimensional checks, salt‑spray corrosion tests, and aesthetic review under Ra = 1.6 µm standards. Certificates of conformity accompany every shipment.
10. Tailored OEM / ODM Case Studies for B2B Buyers
Case Study A: Buddhist Art Distributor (Japan)
- Challenge: Replicate 108 unique hand gestures (mudras) at 120 mm height with seamless finish.
- Solution: Multi‑part soluble wax cores integrated into a single pour; minimal grinding.
- Outcome: Reduced client’s polishing workload by 50 hours per statue, slashing retail lead time.
Case Study B: Luxury Door Hardware Brand (USA)
- Challenge: Produce ornate handles with integrated copper antimicrobial inlays, sub‑50 µm tolerance on mating surfaces.
- Solution: Vacuum‑assist pouring + rapid quench to maintain grain size.
- Outcome: Warranty claims plunged below 0.2 %, enabling the brand to extend its limited lifetime guarantee.
Case Study C: Industrial Pump OEM (Germany)
- Challenge: Achieve internal cooling channels impossible via drilling.
- Solution: Ceramic core technology, X‑ray verification, laser‑marked traceability.
- Outcome: Pump efficiency improved 12 %, yielding a 3‑year ROI for the client.
Ready to Elevate Your Product Line with Precision Copper Casting?
Lost wax casting remains the definitive pathway for B2B buyers requiring complex geometry, pristine surface finishes, and economical scalability in copper‑based components. From heritage statues to mission‑critical industrial parts, the process delivers tangible value across aesthetics, performance, and total cost of ownership. Leveraging 17 years of expertise, QUANZHOU NUOJIE LIGHT INDUSTRY CO. LTD stands ready to transform detailed CAD visions into market‑leading realities—on spec, on budget, and on time.
Frequently Asked Questions
Q1. How does lost wax casting affect lead time compared with sand casting?
As a factory, we typically deliver first articles in 4 – 5 weeks, versus 6 – 8 weeks for complex sand molds. Subsequent batches ship faster because wax tooling requires minimal maintenance.
Q2. Can you integrate threaded inserts or studs directly into the casting?
Yes. We over‑mold stainless or brass inserts during the pour, saving customers secondary tapping or welding costs.
Q3. What is the maximum casting weight you can handle in copper?
Our current ladles accommodate single pieces up to 120 kg. For heavier parts, we modular‑cast and braze joints that are visually invisible after finishing.
Q4. Do you provide RoHS and REACH compliance documentation?
Absolutely. Each shipment includes full material certifications and third‑party lab reports verifying low lead and cadmium levels.
Q5. How do you ensure dimensional consistency across repeat orders?
We store digital SPC data for every cavity and maintain calibrated CMM fixtures. Re‑orders reference the same control plan, guaranteeing identical dimensions batch after batch.
